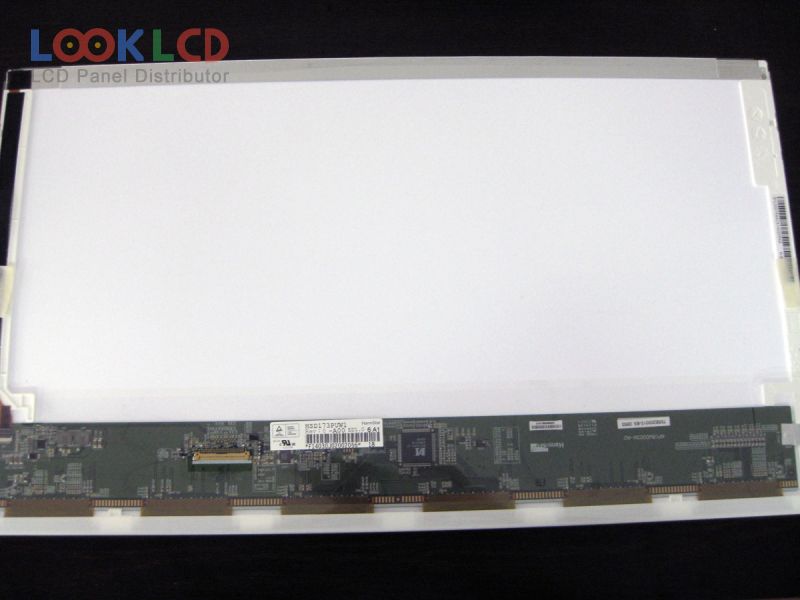

| Artikelnummer | HSD173PUW1-A00 |
| Marke | HannStar |
| Größe | 17.3 |
| Anwendung | NBPC |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 220 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | HannStar |

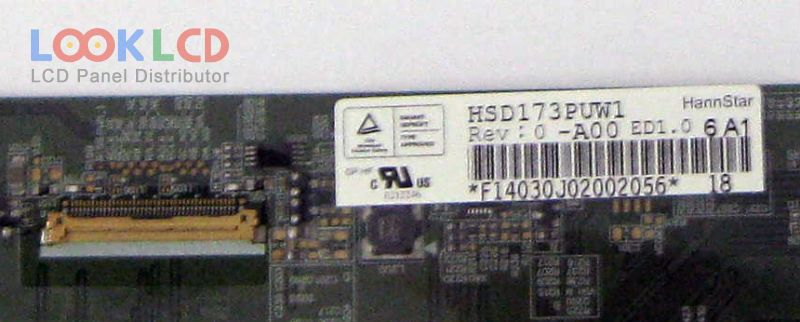

| Panel-Modell | HSD173PUW1-A00 2 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 17.3 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 381.888×214.812 mm |
| Umriss | 398.1×232.8×5.8 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Glare (Haze 0%), Hard coating (3H) |
| Helligkeit | 220 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193160% |
| Reaktionszeit | 2.4/5.6 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/60/75 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (2 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
