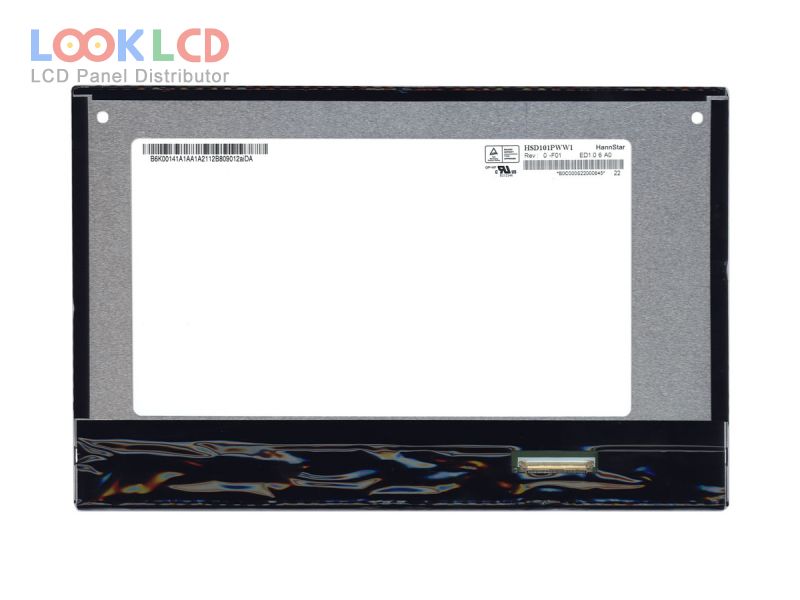

| Artikelnummer | HSD101PWW1-F01 |
| Marke | HannStar |
| Größe | 10.1 |
| Anwendung | PAD |
| Auflösung | 1280×800 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 800:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | HannStar |
| Panel-Modell | HSD101PWW1-F01 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.1 inch |
| Auflösung | 1280(RGB)×800 , WXGA |
| Anzeigemodus | HS-IPS, Normally Black, Transmissive |
| aktiver Bereich | 216.96×135.6 mm |
| Umriss | 227.42×147.69×3.13 mm |
| Oberfläche | Hard coating |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193145% |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLED |
| Signalschnittstelle | LVDS (1 ch, 6-bit) |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | PAD |
