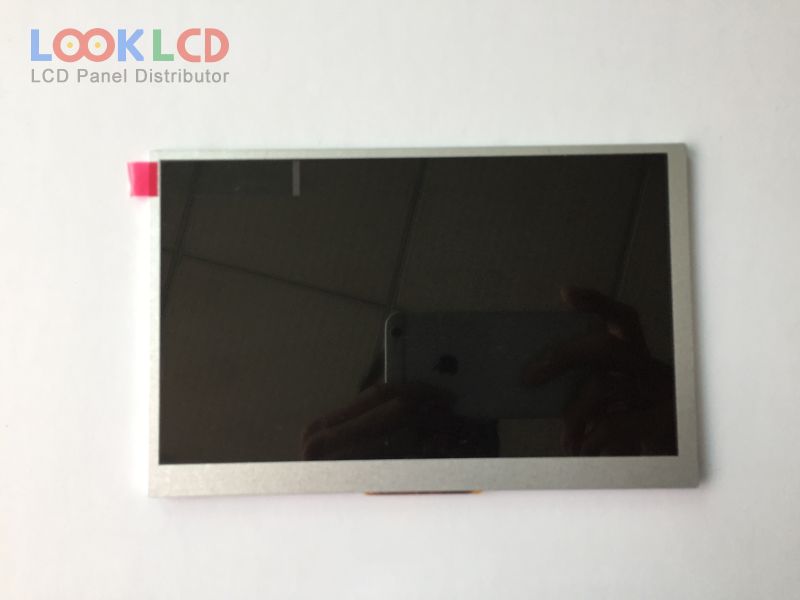

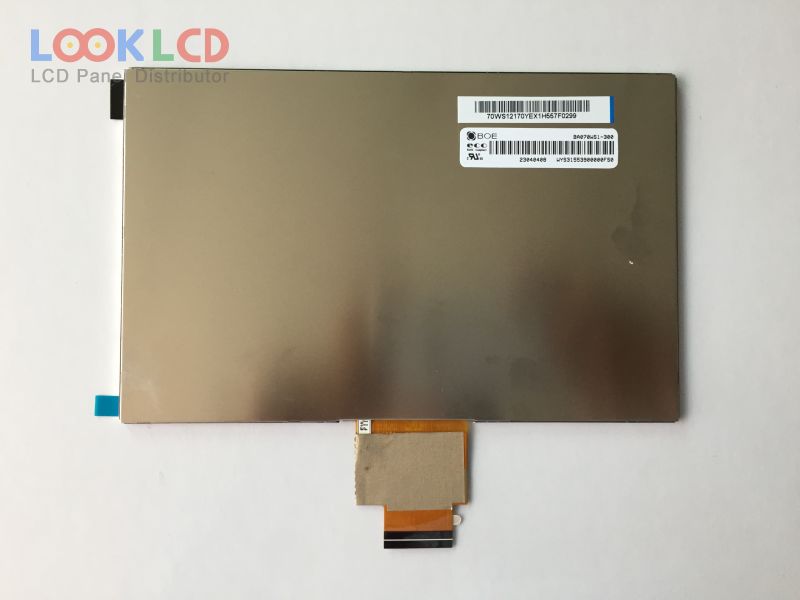

| Artikelnummer | BA070WS1-300 |
| Marke | BOE |
| Größe | 7.0 |
| Anwendung | MP4 |
| Auflösung | 1024×600 |
| Komposition | LCM |
| Helligkeit | 250 |
| CR | 700:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | BOE |
| Panel-Modell | BA070WS1-300 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 7.0 inch |
| Auflösung | 1024(RGB)×600 , WSVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 153.6×90 mm |
| Umriss | 165.75×105.39×3 mm |
| Oberfläche | Glare (Haze 0%) |
| Helligkeit | 250 cd/m² (Typ.) |
| Kontrastverhältnis | 700:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Reaktionszeit | 30 (Typ.)(Tr+Td) |
| Blickwinkel | 70/70/65/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit), 40 pins |
| Eingangsspannung | 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Anwendung | MP4 |
