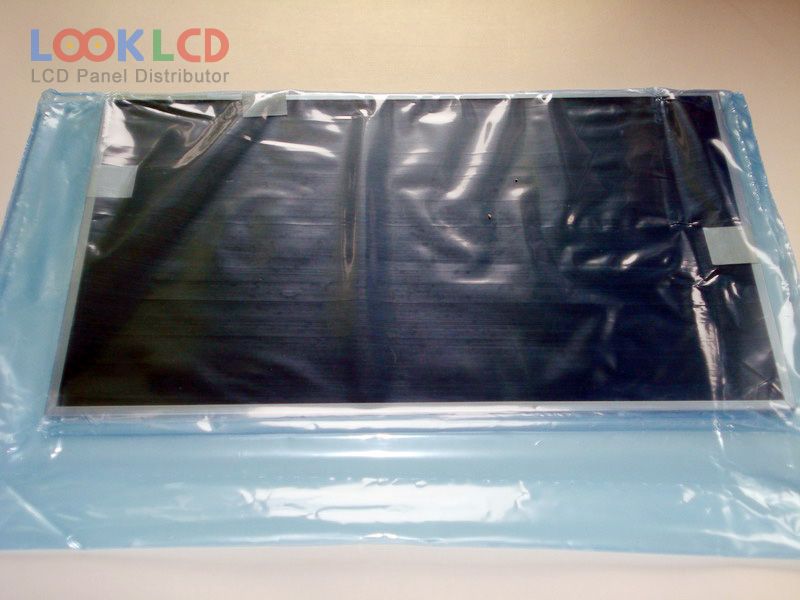

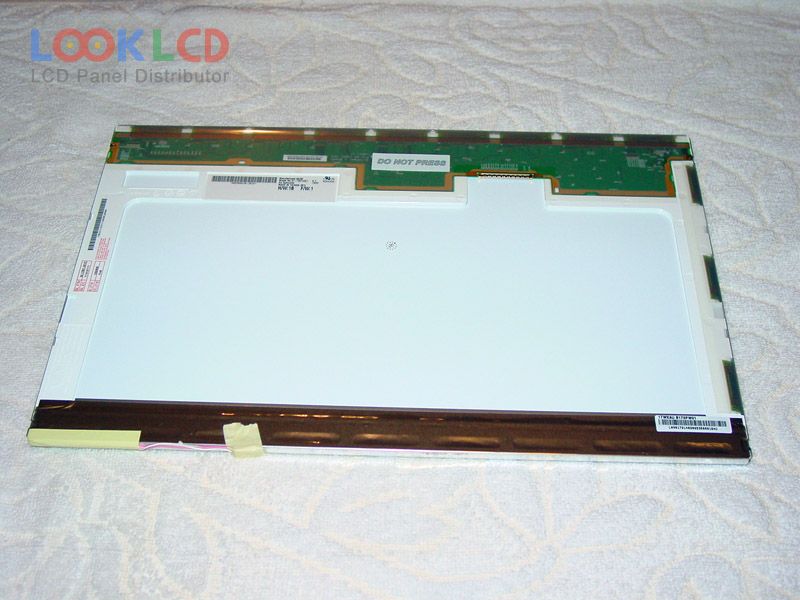

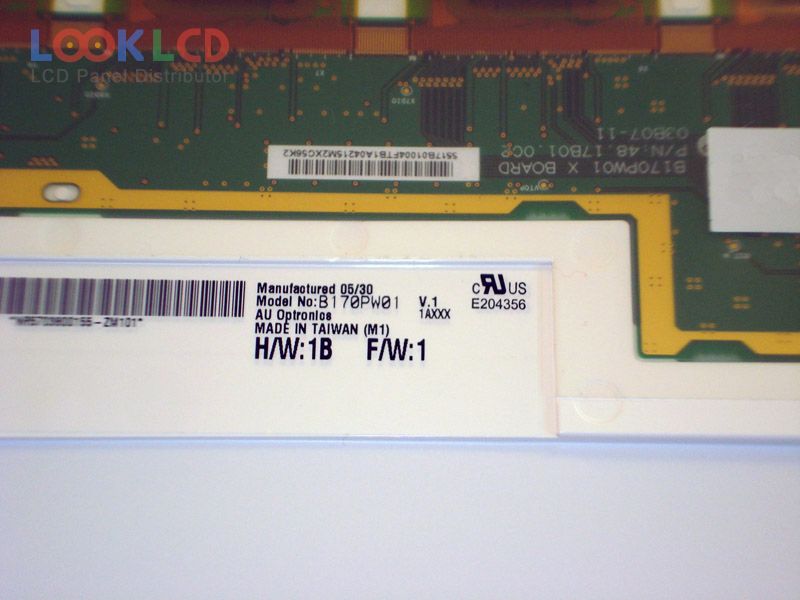

| Artikelnummer | B170PW01 V1 |
| Marke | AUO |
| Größe | 17.0 |
| Anwendung | NBPC |
| Auflösung | 1440×900 |
| Komposition | LCM |
| Helligkeit | 190 |
| CR | 400:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | AUO |
| Panel-Modell | B170PW01 V1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 17.0 inch |
| Auflösung | 1440(RGB)×900 , WXGA+ |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 367.2×229.5 mm |
| Umriss | 382.2×244.5×7.3 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Antiglare (Haze 40%), Reflection 2.5% (Max.) |
| Helligkeit | 190 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193150% |
| Reaktionszeit | 12/4 (Typ.)(Tr/Td) |
| Blickwinkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (2 ch, 6-bit), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
