| Artikelnummer | B156HAT01.0 |
| Marke | AUO |
| Größe | 15.6 |
| Anwendung | NBPC |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 270 |
| CR | 800:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | eDP |
| Panel-Marke | AUO |
| Panel-Modell | B156HAT01.0 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.6 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | AHVA, Normally Black, Transmissive |
| aktiver Bereich | 344.16×193.59 mm |
| Umriss | 366.38×225.31×5.4 mm |
| Formstil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Oberfläche | Hard coating (7H) |
| Helligkeit | 270 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193172% |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |

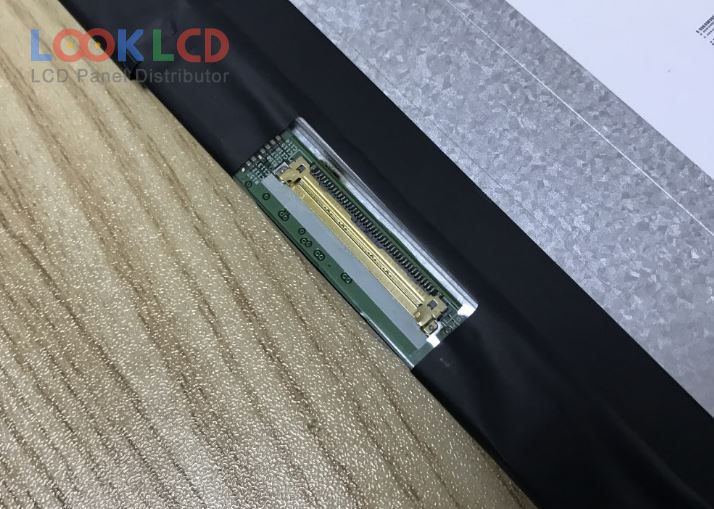

| Signalschnittstelle | eDP (2 Lanes), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
