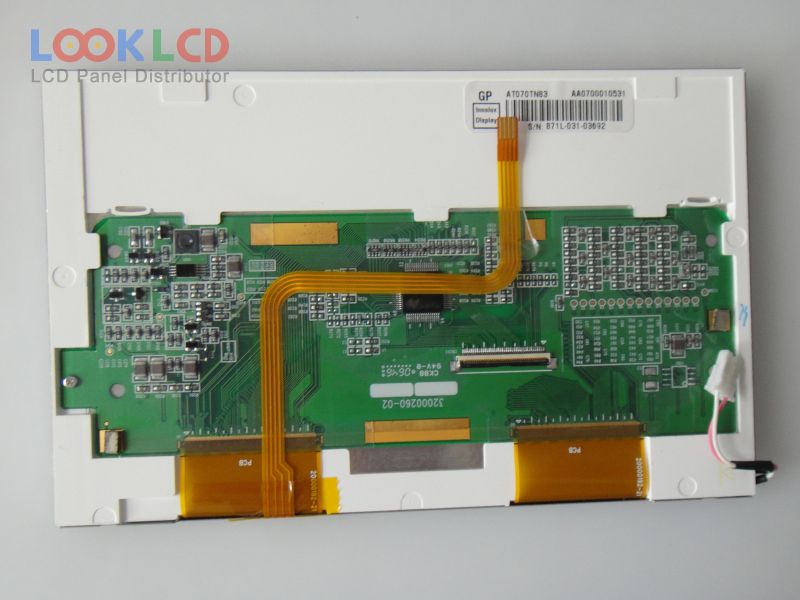

| Artikelnummer | AT070TN83 TP |
| Marke | Innolux |
| Größe | 7.0 |
| Anwendung | MP4 |
| Auflösung | 800×480 |
| Komposition | LCM |
| Helligkeit | 240 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | INNOLUX |
| Panel-Modell | AT070TN83 TP |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 7.0 inch |
| Auflösung | 800(RGB)×480 , WVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 152.4×91.44 mm |
| Umriss | 165×104×6.8 mm |
| Oberfläche | Antiglare |
| Helligkeit | 240 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 10/15 (Typ.)(Tr/Td) |
| Blickwinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | 3S9PWLEDWithout Driver |
| Signalschnittstelle | TTL (1 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.)(VCC) |
| Anwendung | MP4 |
